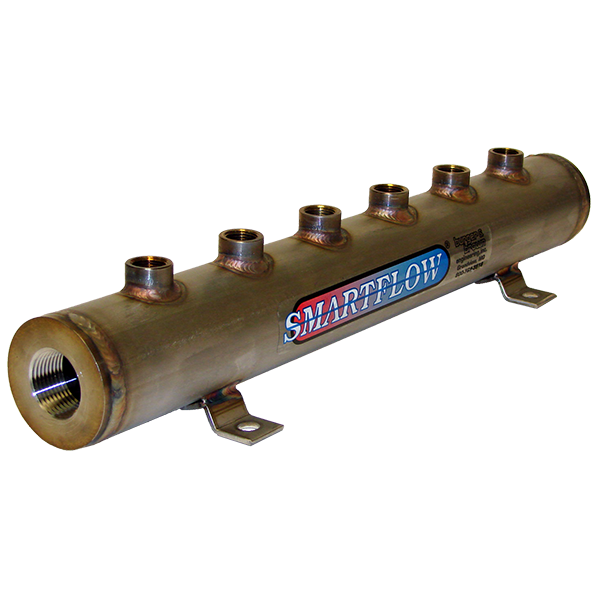

High Pressure, High Temperature Stainless Steel Manifolds
Ideal for use in punishing applications.
Smartflow High Pressure and Temperature Manifolds and Assemblies are designed for use in
• pressurized hot water cooling systems up to 450°F (232°C), 450psi (31bar)
• hot oil cooling systems up to 600°F (315°C), 100psi (6.9bar)
Smartflow manifolds are ideal for connection to temperature control units in an injection molding or die-cast application. The manifolds are available with 3/4″, 1″ and 1-1/2″ inlet sizes (one end only). Optional Flowmeters and regulators (1/2″NPT) are constructed of stainless steel with high temperature seals for corrosion-free operation and long, trouble-free service life.
Assembly services are also available. We add your specified valves, fittings, temperature, or pressure gauges as needed. All manifolds are 100% leak tested to 250psi.
Product Overview
Features and Benefits
- Corrosion-resistant stainless steel construction
- 100% Leak tested
- Integral mounting brackets
- Add high-temp flow meters or flow regulators (6 gpm or 22 lpm) for precise process control. Assemblies will have the pressure and temperature rating of the lesser-rated components
