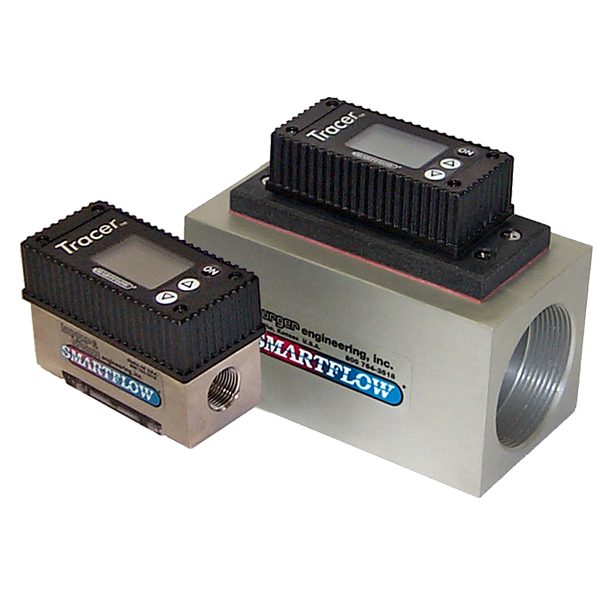

Legacy Tracer® Flow Meters
Measure liquid flow rate and temperature, calculate BTUs per minute, and indicate Turbulent Flow.
The highly visible display is configured via the sealed push buttons and user-friendly menus.
As a diagnostic tool, engineers and maintenance personnel can quickly spot-check temperature and flow in water lines using the LCD TRACER flowmeter. This portable LCD unit is unmatched as a troubleshooting tool. As a process control tool, the TRACER can be left in place to closely monitor more critical applications. The adjustable, automatic shut-off feature prolongs battery life.
NIST Traceable Calibration is available.
Product Overview
Features and Benefits
- Flow rate in gallons or liters per minute, +/- 5% Accuracy based on full range
- Temperature in degrees Fahrenheit or Celsius
- Turbulent Flow Display (FCI Technology)
- Optional NIST Traceable Calibration available
- Turbine flow measurement
- Temperature displayed in tenths of a degree
- BTU Display
- Mount in any position
- Accepts flow in either direction
- 3/8″ and 2″ NPT(F) connection sizes
- Battery powered
- Programmable “on” time
- U.S. Patent Number 7,729,869
FCI Technology
Turbulent Flow is the point at which cooling efficiency is optimized. Flow rates higher than the point of Turbulent Flow do not provide proportionally increased cooling improvement. Using FCI Technology, systemic cooling water flow can be optimized, conserving water and maximizing cooling plantwide without plumbing changes. “TFLOW” displays when Turbulent Flow is present within the Tracer flowmeter.
Downloads
Specifications
Refer to the Electronic Flowmeter pages of the Tracer®VM Base and Tracer®VM with User Interface for the sizes and flow ranges not shown in this table.
| Connection Size | Flow Range GPM | Flow Range LPM |
|---|---|---|
| 3/8″ | 0.5 to 8 | 2 to 30 |
| 2″ | 10 to 110 | 38 to 418 |
Wetted Parts:
- Flowmeter Body – Nickel Plated Brass (3/8″) or Anodized Aluminum (2″). Stainless Steel is available in 2″. Contact your distributor for details.
- Sight Window – Polysulfone (3/8″ units only)
- Impeller – Nylon 6.12
- Shaft – 18-8 Stainless Steel
- Magnet – Neodymium
Power:
- Battery – 3.6V 1.0A Lithium
- Battery Life – 500 hrs actual use
Temperature:
- Range -32 to 180°F (0 to 82°C)
- Accuracy +/- 2% of display value
- Repeatability +/- 1% of display value
Environmental:
- Pressure – 3/8″ – 150 psi max., 2″ – 100 psi max.
